A primary school in Michigan starts a new era of generative design

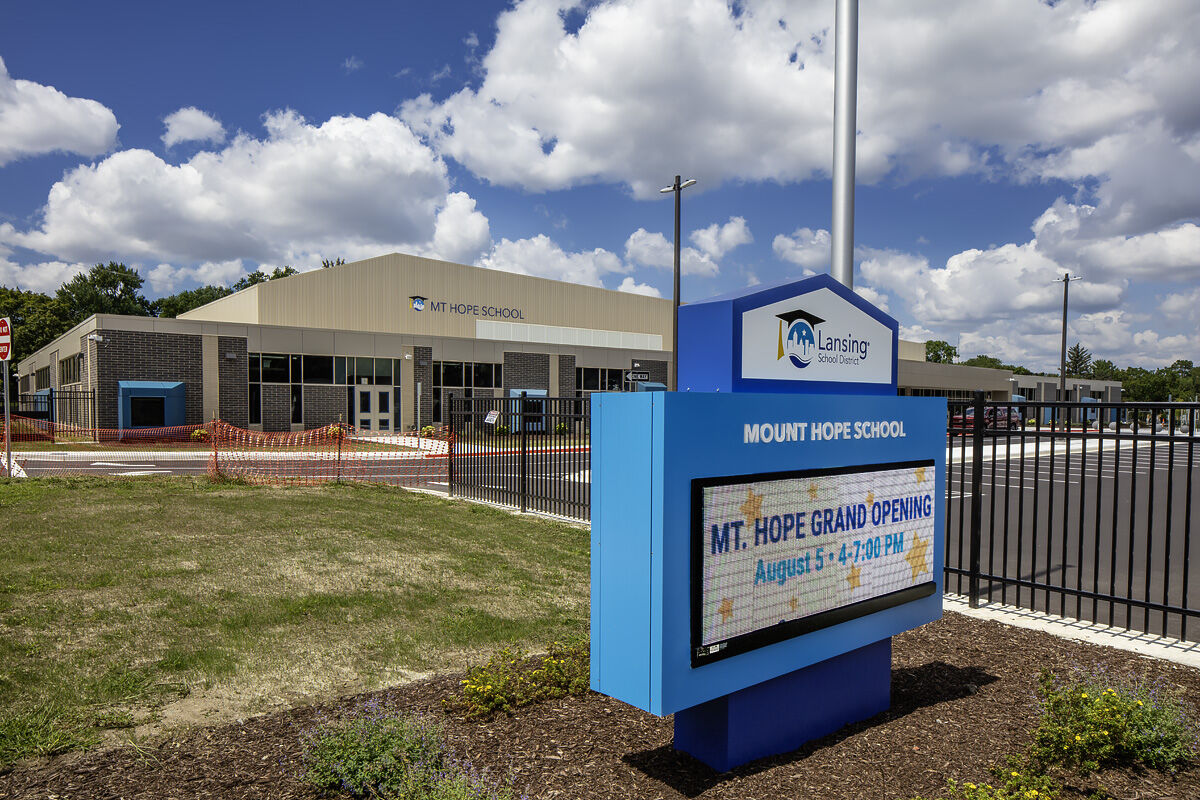

When Mt. Hope Elementary in Lansing, Michigan, opened his doors at the beginning of this month, the ligaments were not the only one. Among its floors and behind its walls there are 11,000 feet of electric breeds, which are guided by artificial intelligence.

For Francesco Iorio, the project limits a six -year trip to prove that AI can tackle the scale, complexity and real disorder of the construction. Iorio was a co -founder of Augmenta Inc. in 2019 to bring AI to a construction site that has long opposed automation.

“We have had generative design for years, but always on small objects such as car parts that you can hold in our hands,” said Iorio. “A building is more complex.”

Hard for Ai

When designing electrical systems, complicated networks of lines, bends, intersections and load points are defined, which have to follow both rigid technical standards and the quirks of each project. Designers have to weigh up factors such as security codes, design ability and long -term maintenance and at the same time the costs and the time pland pressure.

There are also many unwritten rules or problems and efficiency stands that experience experienced electricians on the field for years. “They don't learn them at school and they are not written anywhere,” said Iorio. “But they are critical to do something that can actually be built.”

Generative AI is characterized to emphasize pictures, text or music, but it fights with the creation of exits that require extreme precision and adhering to a number of restrictions. Generative design is a process that uses algorithms and AI to create designs based on a number of certain requirements and restrictions. Essentially, the designer defines the output and restrictions and shows which design works best.

Even a medium -sized construction project such as a primary school can “have hundreds of thousands of interconnected parts, physical restrictions, building regulations and decades of unwritten best practice that only live in people's minds,” said Iorio. “All of this in the software has never been done before.”

During his time as a research director at Autodesk Inc. Augmenta's approach, Iorio was integrated from a generative design that combines generative AI and physics -based generative design. The former learns patterns from thousands of past designs, including elements of human intuition about layout and routing. The latter places every part exactly where it belongs and ensures compliance with the codes and the design.

Common-Sense filter

The use of generative AI as a “common sense filter” before the optimization carried out, has reduced an otherwise infinite search space for possible designs. Without “you would have to wait until the end of the universe to find a solution that corresponds to all rules of this size,” said Iorio,

Designers upload a full 3D building unification model, which was created in the Revit design software from Autodesk, which shows elements such as walls, blankets, rays and columns. An electrical specification on a high level shows the areas of rooms, load requirements and system types. The specification also contains context -related restrictions, such as

The proprietary cloud-based AI model from Augmenta takes up all of these factors, performs the optimization routines and spits out a fully detailed BIM model of the electrical system, which shows the exact recommended placement of each panel and conductor. The model can be used for procurement and installation.

For this first project, the system only resulted in a modest speed improvement of 25%, partly, since both the customer and Augmenta learned the ropes of cooperation with a AI design partner. The following projects record the productivity gains in the range of 50% to 70%, said Iorio.

Waste dividend

The model also provided a waste waste marked by 15%. “In a hospital or a data center, thousands of pounds are copper and steel that do not have to be made, shipped and unloaded to a landfill,” said Iorio. “Even state -of -the -art projects procure a large number of building materials that come as excess material in a ditch.”

The ACI from Augmenta does not recommend a single “perfect” design, but creates a menu with practical options with the compromises that are clearly specified each. For example, a layout can minimize the installation costs, but restrict the future expansion or take longer to facilitate maintenance. The ultimate choice is always with a person.

Although a primary school is a manageable evidence, Iorio said that the Augmenta system is already working in data center and hospital projects for hundreds of thousands of square foot installation space. Such designs can take 10 to 14 hours for the Cloud platform to be carried out by Augmenta, but it is a decline in the bucket compared to the working weeks that usually require such designs.

The design of the electrical system is only the beginning for Augmenta, which has collected more than 25 million US dollars in financial resources. It is planned to get into mechanical, HLK and sanitary systems and finally cover the full stack of civil engineering.

“We decided to start the most difficult problem first,” said Iorio. “If we can validate in the most complex case, we have a trajectory to target the other business without painting us in a corner.”

Photo: The Christman Co./linkedin
