Earth's Embrace: An Organic Eco Retreat in Wayanad
Set in a 4-hectare hillside plantation in Wayanad, Kerala, IndiaEarth's Embrace by Raving Dots Studio is both an eco-retreat and an architectural experiment, combining computer-aided design with indigenous wisdom. The project responds to two challenges: how to reconnect people with nature and how to build with a minimal ecological footprint. The shape of the retreat is derived by parametric Modeling optimized to reduce area and material consumption while harmonizing with the contours of the site. The thin but strong ferrocement shell structure enabled a sculptural enclosure with minimal resources. Insulated with breathable mud plaster, this shell provides a balance between thermal comfort and natural feel. The construction followed a philosophy of gentle intervention: minimal removal and fill, orientation towards the sunset view and preservation of the existing vegetation.

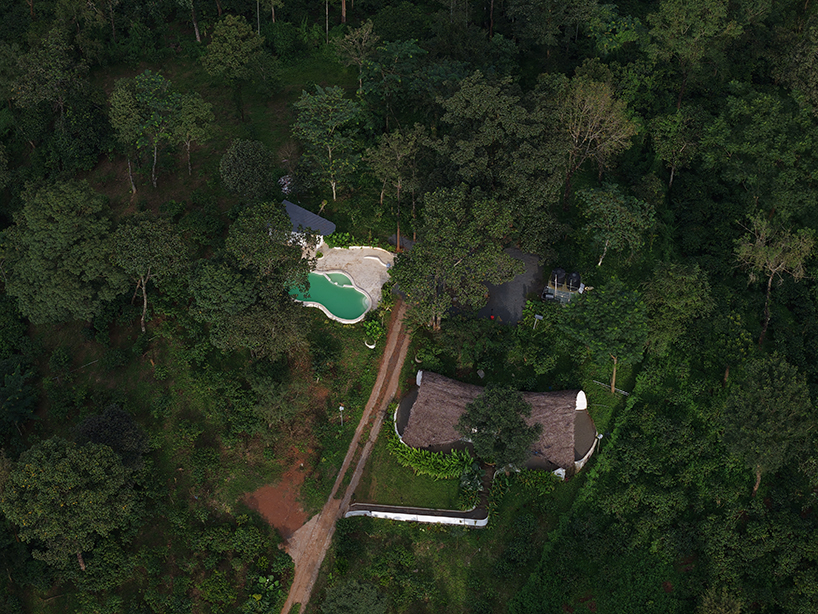

The cabin is located within a larger eco-retreat masterplan, connected by organic pathways All images courtesy of Raving Dots Studio
organic sustainable construction by Raving Dots Studio
Inside, the spatial experience is meditative. Light penetrates through carefully placed openings, framing views of the plantation and sky, while the organic curves smoothly guide movement. Sustainability is not only anchored in form and material, but also in environmental systems. The design integrates an earth-air tunnel system for passive cooling, reducing reliance on mechanical conditioning. The cabin's microclimate is further supported by preserved vegetation and natural ventilation pathways, shaped by the geometry itself. Earth's Embrace represents a broader design ethos at Raving Dots studio: To create architecture that is simultaneously organic, computationally optimized and deeply rooted in its ecological context. Rather than being a static object, the retreat is designed to be a living participant in the landscape, weathering, adapting and evolving over time.

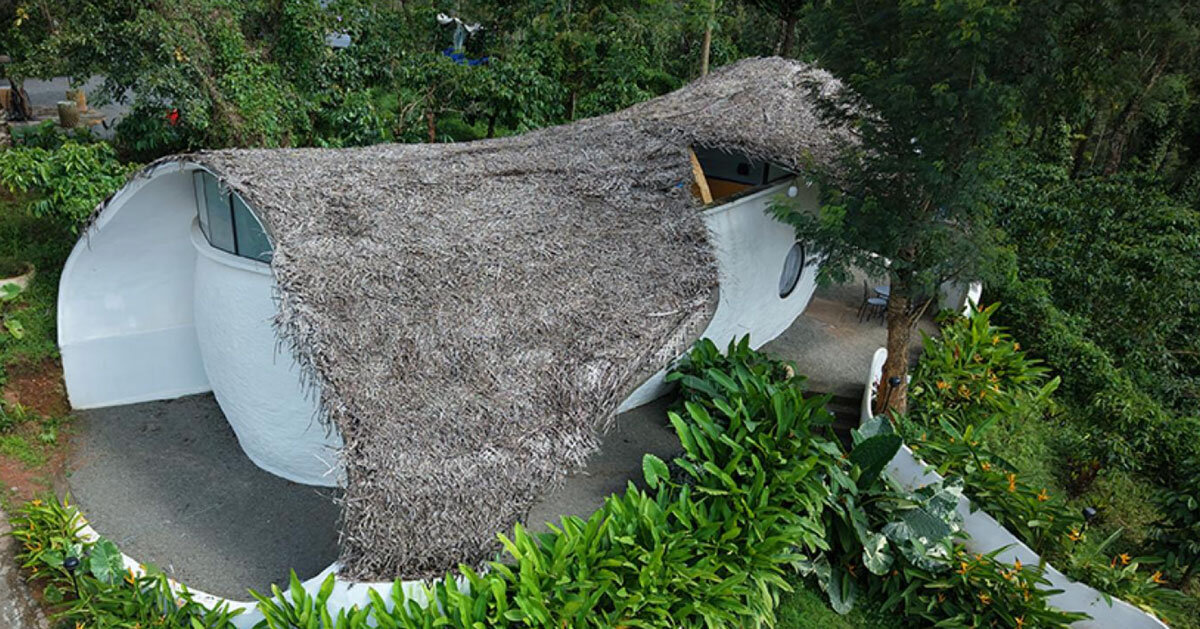

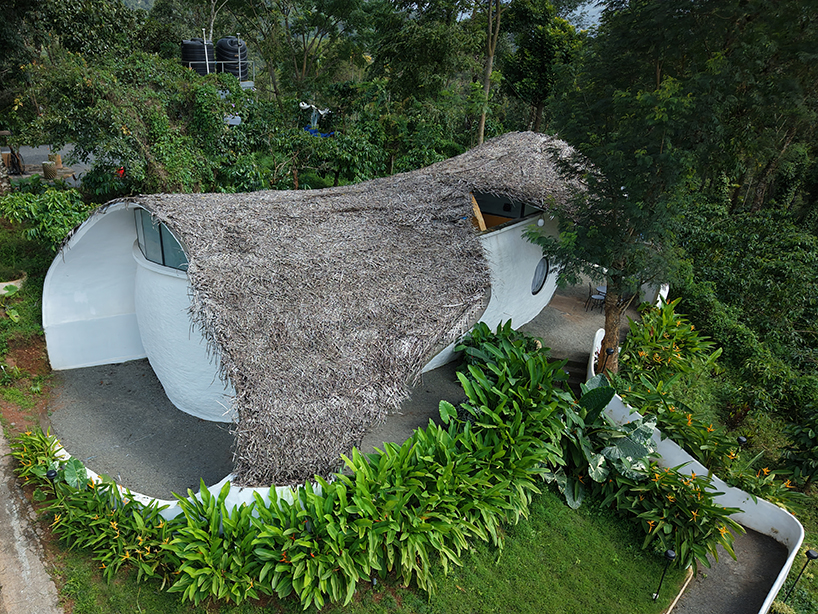

Parametric roof geometry, draped with natural straw, frames the cabin with lush vegetation

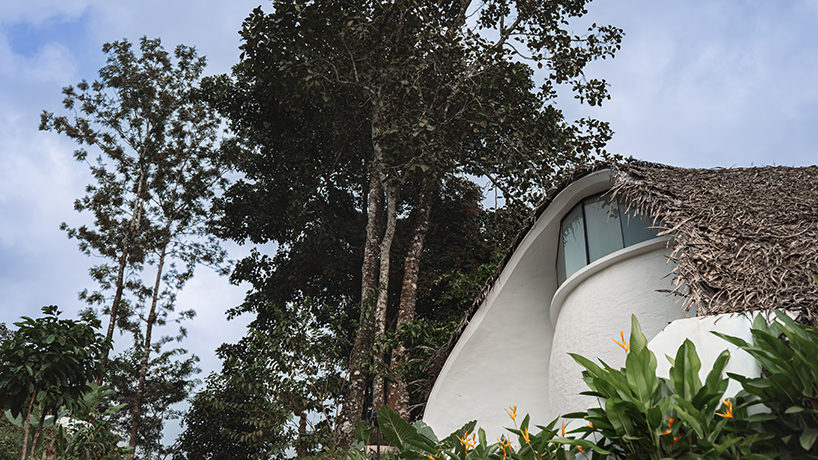

The curved shell made of ferrous cement meets a glass band that allows light to enter

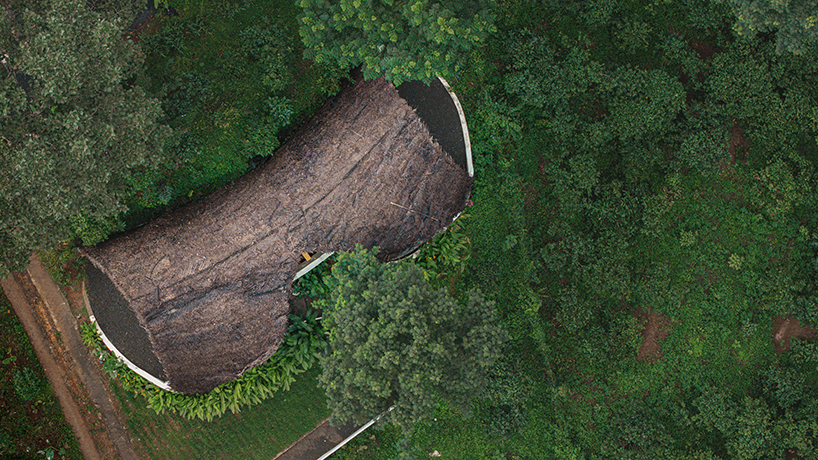

Earth's Embrace blends into the hillside plantation, its organic shell roof merging with the surrounding greenery
