Wood is part of the foundation of the American infrastructure. Sometimes used for pedestrian and bicycle bridges, they are far from nostalgic setbacks. Modern wooden bridges are powerful, environmentally friendly structures that meet the requirements of the 21st century infrastructure. From flood -resistant intersections in desert areas to low spanes in protected wetlands, wooden bridges are relevant and for the striving for resistant, sustainable design of essential importance.
Two current examples show the continued relevance of wooden bridges: the Thousand Trails Bridge in Acton, Cali. And the Mandalay Bridge, which is located on a private property in the coast in South Florida. These structures designed and built by York Bridge Concepts (YBC) and illustrate the potential of wood in dry and aquatic environments. Each bridge combines the technical performance with an ecological building and proves that wooden bridges can be resistant, sustainable and beautiful.
Designing, handicrafts and construction of a wooden bridge is an art form. YBC, which celebrates its 40th anniversary this year, and construction companies such as Western Wood Structures, Milbocker and Sons and several others carried out and modernized this tradition.
With thoughtful technical and innovative construction methods, wood plays an important role in the modern infrastructure.
A timeless material
Wooden bridges have deep roots in the American infrastructure. In the 19th century, thanks to its abundance and user -friendliness, Holz was a main bust and was based on countless, covered bridges that the farmers connected in rural communities.
Wooden bridges were known for their ingenuity. The builders developed a variety of half -timbered styles -such as the citygitter, the Burr Arch and the Howe Truss -to increase the span and load capacity.
The use of roofs and side walls protected structural wood from the weather and significantly extended their lifespan.
In fact, some wooden bridges from the 19th century are still in operation today, proof of their design and their craftsmanship.
When steel and concrete became dominant materials in the 20th century, wood never disappeared. In forested and rural regions, wood remained an inexpensive and accessible material.
Wood is probably not used as part of an interpretation or over average in the Mississippi. But modern engineering and treatments such as pressure -treated glulam rays have revived the wood as a practical choice in certain situations.
Wood can provide beauty and character as well as strength, durability and environmental compatibility.
Greenly carries out the life cycle analysis (LCA) for projects. According to Greenly's carbon analysis, YBC saves over 32,000 kilograms of carbon dioxide equivalent in 2024.
Compared to steel or concrete in certain applications, timber construction is also efficient in terms of costs and construction time, especially in remote areas in which access to strong devices is limited.
Resilience in the high desert
After the fall floods destroyed a passage system in the Thousand Trails Soledad Canyon RV Resort in Acton, Cali, access to parts of the park was lost.
In order to restore this access, YBC designed and built a 320 feet long wooden bridge-a performance in less than three months, which was achieved by a crew of seven master craftsmen who work in a challenging desert environment.
The bridge, which is supported by Glulam Douglas FIR stringers and treated wooden piles, includes a span of 80 feet, two 60-foot spans and six 20-foot clamping widths.
With a last HS20-44 load, the bridge can absorb everything from motorhomes to emergency vehicles. Its increased design replaces the failed permeability system below the class, restores the watercourse into a natural state and creates habitat for endangered fish and amphibians.
“The removal of the concrete runs and the installation of a wooden bridge over the class enabled the watercourse to return to its natural state,” said Mike Sukel, director of wealth management for equity lifestyle. “It also made it possible to restore local plant material, which in turn created a habitat for endangered fish and amphibian species.”
The Thousand Trail project shows an example of the construction method (top-down) from YBC, in which bridge elements are assembled from the deck down. This approach minimizes environmental disorders by holding heavy devices from a sensitive country.
In this case, the bridge over a dry river bed could be built without affecting the floor or the existing vegetation.
According to the team, security and durability were of the utmost importance. The bridge corresponds to the 100-year storm standards in California and includes non-slip surfaces that reinforce the anchorage for seismic resilience and aashto-compliant guardrails. The open-span design also alleviates future flood risks.
“The previous infrastructure failed during the floods,” said Brian Kennedy, director of Bridge Consultancy at YBC. “This bridge was designed so that it won't do it.”
“The wooden bridge fits well with the natural environment and the feeling of the campsite,” said Sukel. “A steel or concrete bridge seems to be out of the pace or too impressive.”
The effects on the community were another important result. The park had previously been partially cut off due to infrastructure failure. Now access is not only restored for guests, but also for emergency services.
The presence of the bridge also increases the visual character of the park and becomes its own landmark.
Harmony in a coastal ecosystem

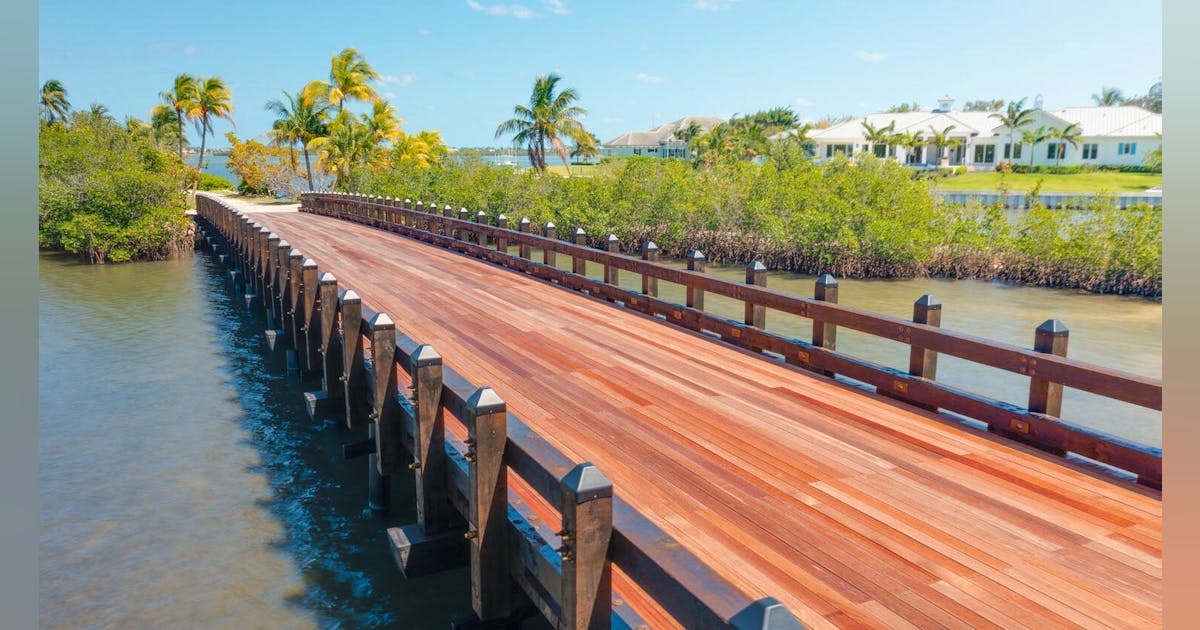

The Mandalay Vehicular Timber Bridge is located in the lavish tropical landscape in South Florida in the coast in South Florida and is a striking example of how the infrastructure can coexist with fine environments.
With a length of 262 feet, this wooden bridge replaces a deteriorating structure on a private property and crosses a flat tidal mouth with protected mangroves and Johnson Sagras.
From the beginning, the project was considerable environmental and logistical challenges. The bridge had to comply with strict environmental protection for local mangrove and Johnson Sagras. The traditional construction with heavy equipment would have taken considerable ecological risks, so YBC again used its methodology at the deck level.
This method enabled crews to reduce the existing 50 -year -old bridge and build the new one with hand tools and light devices that are placed directly on the deck, which prevents the sea floor disturbance.
The repetitive 14.55-foot clamping widths through the structure distributes evenly and minimize the influence on the soft dirt and the coquina rock below.
“This project illustrates the eco -tea of the best,” said Drew Dancey, design director of YBC. “We have used south yellow Kiefer and Jatoba hardwood that not only withstand the salt water environment, but also present natural beauty.”
The slim, reserved design of the bridge integrates seamlessly into the tropical environment. Oil coatings and piles protect the wood from UV rays, salt water and rain, while stainless steel hardware resists corrosion.
“We had to be aware of everything in the water up to low oak members during the daily mobilization,” said Dancey.
Environmental surveillance was constant. An ecologist of third -party providers conducted daily ratings and the construction work made themselves near the area at any time. The waste was meticulously managed: all wood shavings were vacuumed and disposed of in order not to ensure contamination in the ecosystem of the wetland.
The Mandalay project was also founded in the challenge. Foundations had to be drilled in Coquina Rock under soft dirt, which required surgical precision. Repetitive Span design contributed to distributing the stress and at the same time minimizing the risk of settlement.
The result is a bridge that improves the access of property and at the same time remains undisturbed.
“The surrounding ecosystems are still flourishing after the construction,” said Dancey.
Timbers modern comeback
The success of these two projects addresses the broader potential of wooden bridges in today's infrastructure landscape. Advances in pressure-treated wood, glulam technology and construction methods have extended the life expectancy of wooden bridges according to YBC to 75 years or more.
“We create a long -term infrastructure that also serves as a carbon bank,” said Kennedy. “Every wooden bridge that we build helps to lower the carbon and make a positive contribution to reducing climate change.”
Apart from sustainability, wooden bridges offer a strong mix of aesthetics and functionality. They are particularly suitable for parks, resorts, private communities and environmentally friendly areas in which visual harmony and ecological preservation are of the greatest importance.
The design approach at the deck level of YBC has proven to be effective in desert and river tree environments. Through the building from top to bottom and the use of light materials and devices, projects can be completed faster, safer and less environmental impact than conventional bottom-up methods.
Timber also offers versatility in design. The bridges of Mandalay and a thousand trails were adapted to their settings, with regionally suitable wood types, legacy series coatings and local structural improvements being used.
A collaborative model
The bridges were the result of close coordination between designers, engineers, supervisory authorities and crews on site. For a thousand paths, this meant coordinating geotechnical, environmental and hydraulic consultants in order to meet the requirements for the approval of California.
For Mandalay it included the daily inspections, strict data protection protocols and the protection of the sea habitat – everything, while they were mobilized from a staging area from an area of almost a miles.
The internal project management model taken over by YBC played a key role in these successes. All aspects – from design and procurement to construction and quality control – were treated by a single team that reduces delays and guaranteed the accountability.
Security protocols were strictly enforced in both projects. The workers were always raised, wore lifeline when they were over water, and followed all Osha standards.
These practices in combination with the proactive planning and real-time adaptability of YBC led to zero cases on both job sites.
Structure towards resilience
Since the United States confront the aging infrastructure and the growing climate problems, wooden bridges can offer a convincing alternative, especially in places where sustainability, aesthetics and ecological sensitivity are essential.
Projects such as Thousand Trails and Mandalay show that Wood is not a relic of the past-it is a future-oriented material that can now meet the highest standards for performance, security and design.
“These bridges are more than crossings. They endure symbols how the infrastructure respect the environment, the tradition of honor and modern needs can satisfy at once,” said Kennedy. RB
